Price: $26.89
(as of Jul 09, 2024 19:02:08 UTC – Details)
Product Description

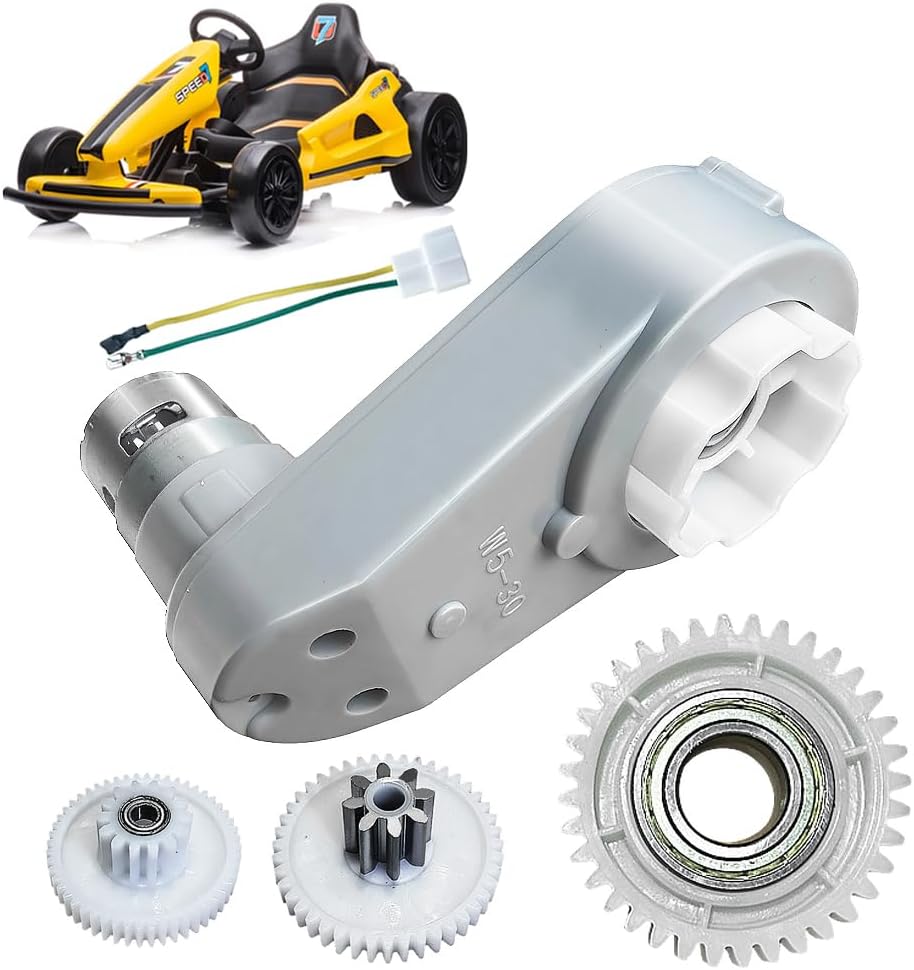

RS775 Motor GearBox
1.RS775 24 Volt 280 Wat Drive Engine With Gear Box For Power Wheel Motor Upgrade 18V.
2.Shaft Hole Diameter: 12mm (0.47″); Length: 185mm(7.28″) Max Width: 92mm(3.62″); Motor Diameter: 40mm(1.574″),One-Click Installation Wires,Item Is Easy To Replace And Is For Kids Ride On Cars,It Is Suitable For Replacing The Gearbox With 6 Plum Blossoms.
3.The GearBox Shell Uses High-Strength Composite Materials, Which Are Not Deformed and Stronger. Both the Small and Large Gears Have Built-in Bearings to Reduce Friction and Improve Service Life. The Middle Gear Adopts Metal Gear
Performance of RS775 Motor Gearbox at Different Voltages
12V
When 12V Power Supply, The Gearbox Outputs 180RPM Per Minute
18V
When 18V Power Supply, The Power is 200W, And the Gearbox Outputs 270RPM Per Minute
24V
When 24V Power Supply, Power is 280W, And the Gearbox Outputs 360RPM Per Minute.
The Advantages of This Motor Gearbox
Gears with Bearings
Both the Small and Large Gears Have Built-in Bearings to Reduce Friction and Improve Service Life. The Middle Gear Adopts Metal Gear
High Strength Shell
The GearBox Shell Uses High-Strength Composite Materials, Which Are Not Deformed and Stronger.
Good Lubrication
Very Good Lubricating Oil is Used Inside the Gears to Reduce Noise and Protect the Gears
Detailed size Introduction
Please Carefully Compare The Size of Original Motor Gearbox，Shaft Hole Diameter: 12mm (0.47″); Length: 185mm(7.28″) Max Width: 92mm(3.62″); Motor Diameter: 40mm(1.574″),One-Click Installation Wires,Item Is Easy To Replace And Is For Kids Ride On Cars,It Is Suitable For Replacing The Gearbox With 6 Plum Blossoms
RS775 24 Volt 280 Wat Drive Engine With Gear Box For Power Wheel Motor Upgrade 18V
18V DC Motor Engine for Power Wheel Ride On Cars Upgrade. When 24V Power Supply, Power is 280W, And the Gearbox Outputs 360RPM Per Minute. When 18V Power Supply, The Power is 200W, And the Gearbox Outputs 270RPM Per Minute. When 12V Power Supply, The Gearbox Outputs 180RPM Per Minute
The GearBox Shell Uses High-Strength Composite Materials, Which Are Not Deformed and Stronger. Both the Small and Large Gears Have Built-in Bearings to Reduce Friction and Improve Service Life. The Middle Gear Adopts Metal Gear
The Gearbox Speed Ratio Is 1:75, The High Speed Ratio Makes The Output Higher Speed.The Motor Power Is 280W, And The High-Power Motor Guarantees A Higher Torque Output.
Please Carefully Compare The Size of Original Motor Gearbox，Shaft Hole Diameter: 12mm (0.47″); Length: 185mm(7.28″) Max Width: 92mm(3.62″); Motor Diameter: 40mm(1.574″),One-Click Installation Wires,Item Is Easy To Replace And Is For Kids Ride On Cars,It Is Suitable For Replacing The Gearbox With 6 Plum Blossoms
It is Designed To Be Used With 24V Battery. If Your Toy Car Is 12V, It Can Also Be Used With 12V Battery, But The Speed Will Be Reduced By Half. Due To The Design Of The Gearbox, It Will Still Provide A Very Fast Speed.
