Price: $59.99 - $299.99
(as of Sep 06, 2024 07:03:04 UTC – Details)
Product Description
1 Multi-Functional 2 USB 3.2 10Gbps Interface 3 6 HDDs – 1030MB/s 4 1 SSD – 510MB/s 5 6-bay Single Disk Storage
1 Large Capacity Space 2 Expand NAS Space 3 Create RAID by TOS 4 Expand PC/Mac/Linux Space 5 A DAS, NOT a NAS
1 Reliable HDD Enclosure 2 Better Heat Dissipation 3 Intelligent Disk Sleep 4 Various Applications
1 Hot Swappable 2 Plug & Play 3 Easy to Place 4 Compact Size
High-speed data transfer and massive storage capacity

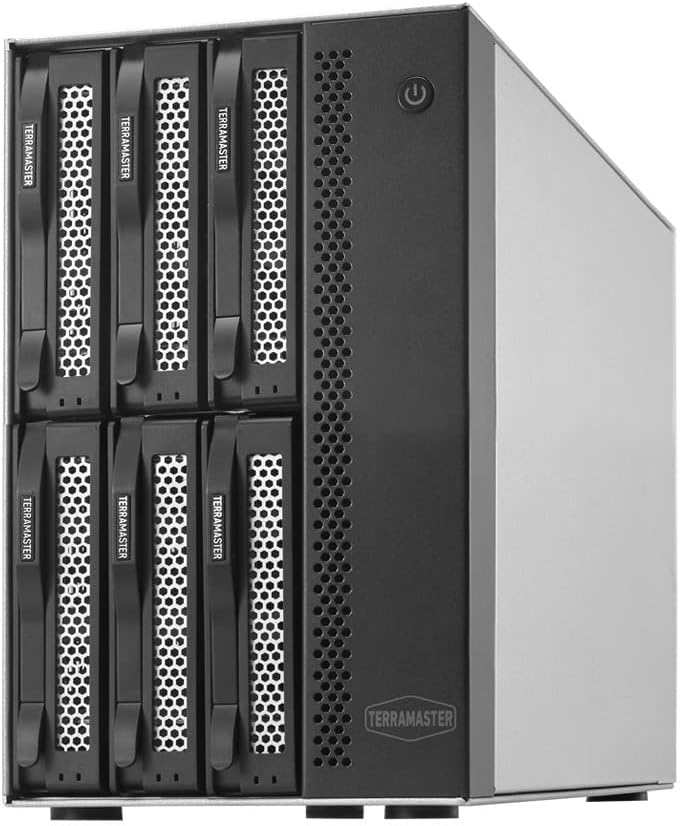

The D6-320 hard drive enclosure features a USB3.2 Gen2 interface providing a 10Gbps data transmission bandwidth. With the capability to support up to six 3.5″ and 2.5″ SATA HDD, and 2.5″ SATA SSD, it offers a maximum drive capacity of 22TB and a storage space of up to 132TB (22TB x 6). When six hard drives are installed (SATA III HDD 8TB x 6 simultaneously read/write), it delivers an actual read/write speed of up to 1,030MB/s, while a single SSD installation (SATA III 1TB SSD x 1) can reach a read speed of 510MB/s. Please note that the D6-320 does not support the function of array and only supports individual disks.
Highly Compatible Interface
The D6-320 USB storage comes with a 1-meter USB Type-C to Type-C cable and is plug-and-play, requiring no drivers. It is compatible with a range of computer interfaces, including USB 3.0/3.1/3.2, Thunderbolt 3/4.
Hot Swappable, Intelligent Disk Sleep
The D6-320 HDD storage allows hot swapping for convenient hard disk replacement while powered on. It supports the sleep function to reduce power consumption and extend the hard disk’s service life by following the computer OS’s sleep mode.
Better Heat Dissipation
The D6-320 HDD enclosure features a temperature-controlled fan that adjusts its speed according to the hard disk’s temperature for optimal performance. Its internal structure is optimized to increase air pressure, reduce hard disk temperature, and minimize noise and resonance. These features enable the D6-320 to operate quietly even under heavy load.
Expansion of NAS Storage Space
The D6-320 DAS storage is compatible with TerraMaster NAS via USB interface with proper adaptation. Users can expand the NAS storage space by creating arrays and storage pools on D6-320 through TerraMaster TOS. Note: this feature requires TerraMaster NAS with TOS 5.1 or later version.
TERRAMASTER HDD Enclosure Comparison
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars
606
4.4 out of 5 stars
606
4.0 out of 5 stars
781
4.0 out of 5 stars
781
Price
$299.99$299.99
$169.99$169.99
$219.99$219.99
$259.99$259.99
Drive Bays
6
4
5
5
Interface
USB3.2 10Gpbs Type C
USB3.1 5Gpbs Type C
USB3.1 5Gpbs Type C
USB3.1 5Gpbs Type C
Max. number of HDDs/SSDs
6 x 2.5″ or 3.5″ SATA 6Gb/s
4 x 2.5″ or 3.5″ SATA 6Gb/s
5 x 2.5″ or 3.5″ SATA 6Gb/s
5 x 2.5″ or 3.5″ SATA 6Gb/s
Max. Storage
132TB (22TB x 6)
88TB (22TB x 4)
110TB (22TB x 5)
110TB (22TB x 5)
Reading Speed (max.)
1030MB/s (6 SSD, Single Disk)
420MB/s (tested by 4 SSD)
410MB/s (2 SSD, in raid 0)
210MB/s (5 SSD, in raid 0)
Writing Speed (max.)
1005MB/s (6 SSD, Single Disk)
390MB/s (tested by 4 SSD)
400MB/s (2 SSD, in raid 0)
190MB/s (5 SSD, in raid 0)
Hardware RAID
✘
✘
✔
✔
RAID Mode
NO RAID
NO RAID
RAID 0, 1, Single
RAID0/1/5/10/CLONE/JBOD/Single
RAID Features
NO RAID, only Individual disks
NO RAID, only Individual disks
HDD1&2 – RAID 0/1/Single
RAID0/1/5/10/CLONE/JBOD/Single
RAID Auto-rebuilding
NO
NO
RAID1
RAID1, RAID5, RAID10
High Speed: The D6-320 hard drive enclosure adopts USB 3.2 Gen2 protocol for high-speed data transmission up to 10Gbps. With 6 hard drives installed, the read/write speed can reach up to 1,030MB/s (SATA III HDD 8TB x 6). With one SSD installed, the read speed can reach 510MB/s (SATA III 1TB SSD x 1).
Super-large Storage Space: The D6-320 HDD storage enclosure can support up to six 3.5″ and 2.5″ SATA HDD, as well as 2.5″ SATA SSD, with a maximum capacity of 22TB per drive, providing users with up to 132TB (22TB x 6) of storage space. Note that the D6-320 does not support arrays and only works with individual disks.
Plug and Play, Highly Compatible: The D6-320 das storage is a plug-and-play device that doesn’t require drivers to work. It is highly compatible with MAC, Windows, and Linux operating systems. It has a USB Type-C interface and comes with a USB type C-type C cable. The device is compatible with various computer interfaces, including USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3, and Thunderbolt 4.
Hot Swappable: The D6-320 USB enclosure supports hot swapping, which allows you to replace the hard disk without having to power off the device. This feature makes data transfer more convenient and efficient.
Better Heat Dissipation: The D6-320 USB storage has an intelligent temperature-controlled and low-noise fan that automatically adjusts its speed based on the temperature of the hard disk. This feature ensures that the hard disk operates at its best temperature and provides better heat dissipation.
