Price: $45.34
(as of Jul 08, 2024 02:49:38 UTC – Details)



Specification:

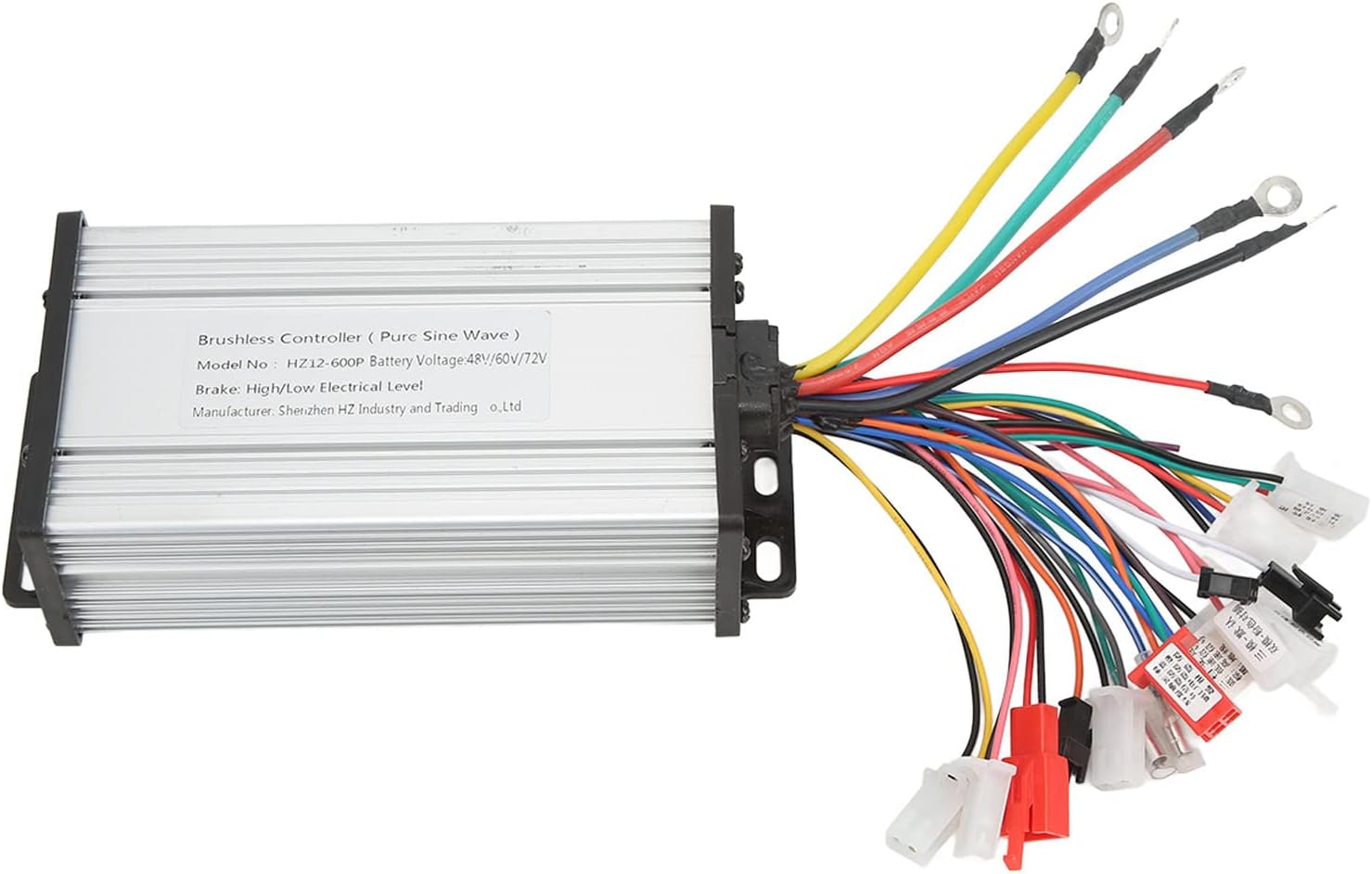

Item Type: Electric Bicycle Brushless Controller
Product Material: Aluminum Alloy
Gross Weight: 528g / 18.62oz
Voltage: 48V/60V/72V
Power: 600W
Current Limit: 30±1A
Phase Angle: 60°/120°
Turning Voltage: 1.1-4.2V
Undervoltage: Automatic
1pc electric door lock
2pcs positive and negative poles of the power supply
3pcs motor phase wires
1pc anti theft alarm wire (red: positive, black: ground)
1pc anti theft alarm line (orange: anti theft electric door lock, blue: anti theft signal, green: sensitivity line)
2pcs Three mode default pink line
1pc high battery brake (purple: high electric brake signal)
1pc low battery wire brake (yellow: level brake, black: ground wire)
1pc button three speed cable (pink: button signal, black: ground)
1pc reversing (gray: reversing signal, black: 1 ground wire)
1pc motor hall (red: 5V positive, black: ground, yellow: green and blue hall)
1pc gear shift (blue: low speed signal, brown: high speed signal, black: ground wire)
White line blackhead: 2pcs learning line
Orange line blackhead: 1pc cruise line
Green wire transparent head: 1pc meter wire
Blue and white line transparent head: 1pc LCD instrument line
1pc low battery brake cable (black: bottom wire, yellow: low battery brake signal)
Three wire switch (red: 5V positive, green: signal wire, black: ground wire)
Cruise line (1 white line blackhead + 1 orange line blackhead)
Pink line white head (dual mode three mode switching line)

Package List:
1 x Motor Brushless Controller
SENSITIVE CONTROL:The brushless motor controller can provide stable speed and sensitive braking and direction change control.
GOOD HEAT DISSIPATION:The controller housing is made of aluminum alloy, with a recessed design for good heat dissipation characteristics to protect the internal circuit, from thermal overload.
APPLICATION FOR:The 48V/60V/72V 600W brushless motor controller is suitable for electric vehicles, electric bicycles and electric tricycles.
LOW NOISE : controller adopts quiet and low noise design, no noise pollution, safe and worry .
EASY TO INSTALL:Easy to install and simple to detach, providing users a good using experience.Each interface has a function description, and the function can be realized by connecting the socket according to your own needs.
