Price: $702.88
(as of Jul 08, 2024 05:22:45 UTC – Details)

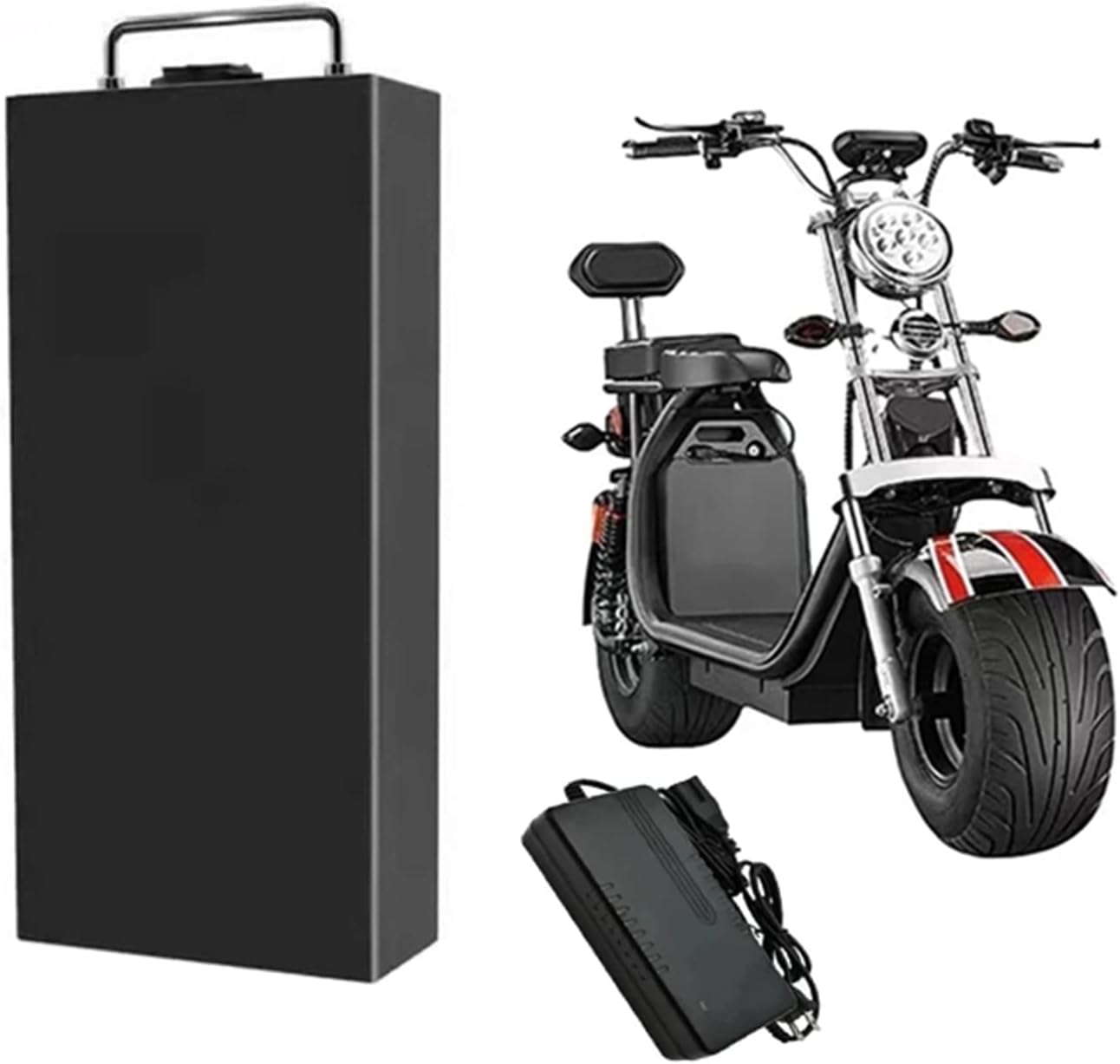

60V Lithium Battery suitable for 250W-1500W Motor Electric Bicycles,Motorcycle,Tricycle,Golf Cart

Technical Parameters

Black Style B

Rated voltage 60V
Rated capacity:10Ah 12Ah 15Ah 18Ah 20Ah
Battery cell type: Li ion battery
Nominal voltage: 59.2V
Operating voltage range: 40V~ 67.2V
Maximum charging current: 10A
Charging voltage: 67.2V
Continuous discharge current: 30A
Instantaneous discharge current: ≤ 60A
Service life: more than 1500 cycles
Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
Size: 95x250x360 mm
Colour: Black
Weight: About 4.6KG~7.8KG

Black Style A

Rated voltage 60V
Rated capacity:10Ah 12Ah 15Ah 18Ah 20Ah
Battery cell type: Li ion battery
Nominal voltage: 59.2V
Operating voltage range: 40V~ 67.2V
Maximum charging current: 10A
Charging voltage: 67.2V
Continuous discharge current: 30A
Instantaneous discharge current: ≤ 60A
Service life: more than 1500 cycles
Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
Size: 340*180*78 mm
Colour: Black
Weight: About 4.6KG~7.8KG

Package content:

1 x 60V Lithium-ion Battery
1 x 67.2V charger

Note: ince the size is manually measured, there may be a slight deviation of ±5mm, please understand.
Synthetic Material
Imported
60V Li-ion Battery Parameter:60v 10Ah 12Ah 15Ah 18Ah 20Ah batteries suitable for 250-1500w motor. It can up to 35-50 miles and it’s affected by factors such as load bearing,road condition,speed, etc. So there is a little deviation. Max Constant Discharge Current: 50A. Charge Time: 7-11 Hours.
Super Safe to Use:Top A grade cells and built-in a 30A BMS (Battery Management System) prevent over-charge, over-discharge, over-current and short circuit and ensure the long life expectancy. Each 60v battery pack have ran through a full charge and discharge test in produce, make sure you getting every amp hour you paid for.
Charging connection indication:When red, the charger is charging the battery; after the charger is finished charging, the indicator light changes from red to green. The battery is charged in constant voltage and current mode, and you can modify the battery to use it in the mode you want.
Waterpoof Material:The Battery pack outer layer PVC material has the characteristics of insulation and wear resistance. the inner layer has the advantages of low melting point, waterproof seal and high adhesion.
Scope of application:60v battery pack are widely used in electric bicycles, scooters, electric motorcycles, tricycles, electric wheelchairs and so on.The Ebike 60v battery charge cycle exceeds 1000 times, life expectancy of up to 5 years.
