16 Inch 350W Electric Brushless Hub Motor Wheel with LCD Display Pedal Assist Sensor for Small Scooter Front Drive Bike Bicycle with Handle Throttle

Leave a reply


Price: $273.00
(as of Jul 09, 2024 09:38:10 UTC – Details)


Product Description

logologo

Add to Cart

Add to Cart

Price

—
— $273.00$273.00 $275.00$275.00
—

conversion kit

q16q16

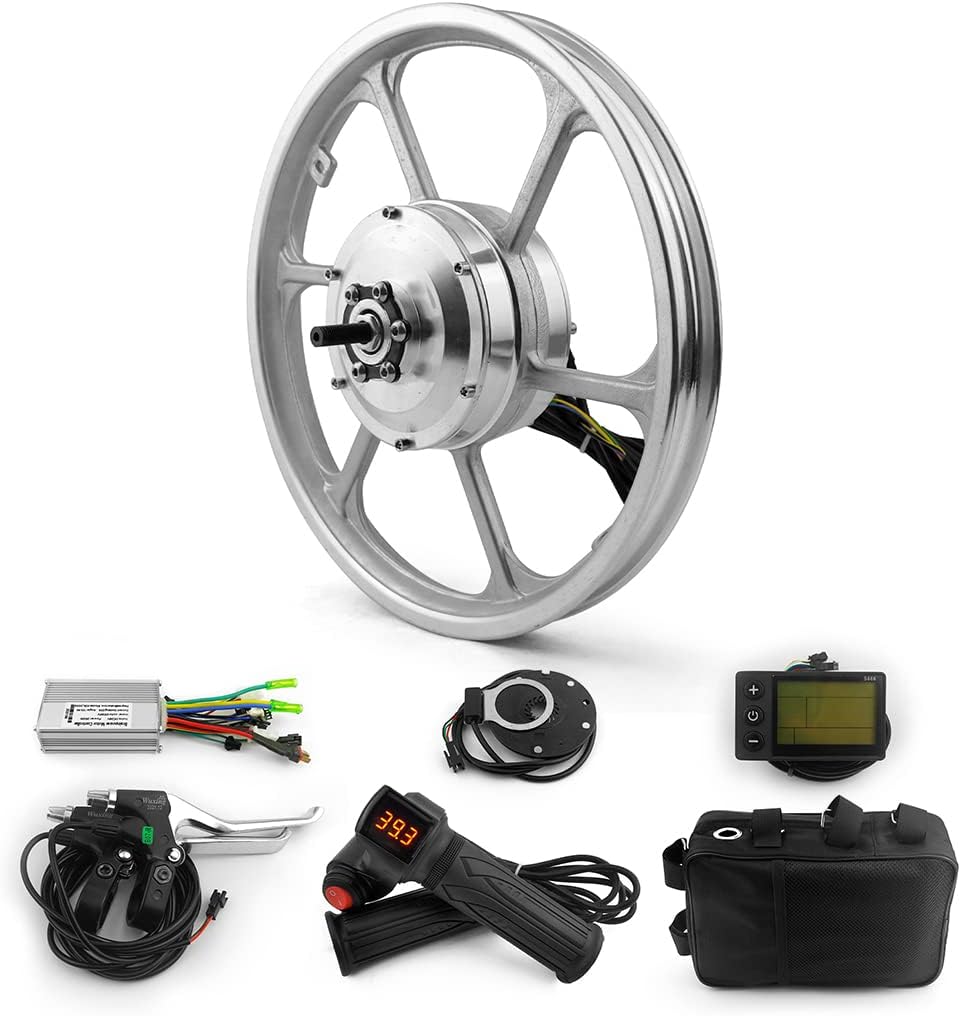

The kit includes:

1). 1x 16″ brushless hub motor (for front wheel)

2). 1x Motor controller

3). 1x Throttle handle

4). 1x Brake lever

5). 1x Pedal assist sensor

6). 1x Battery bag (no battery,size:23x15x7.6cm)

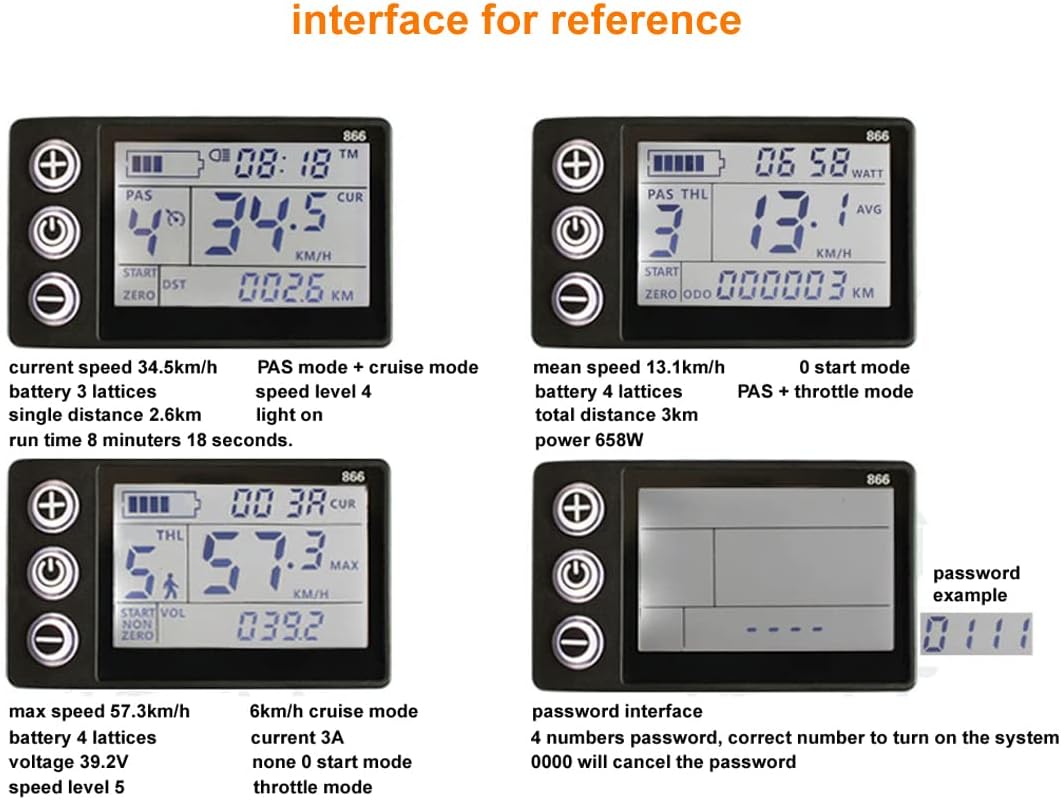

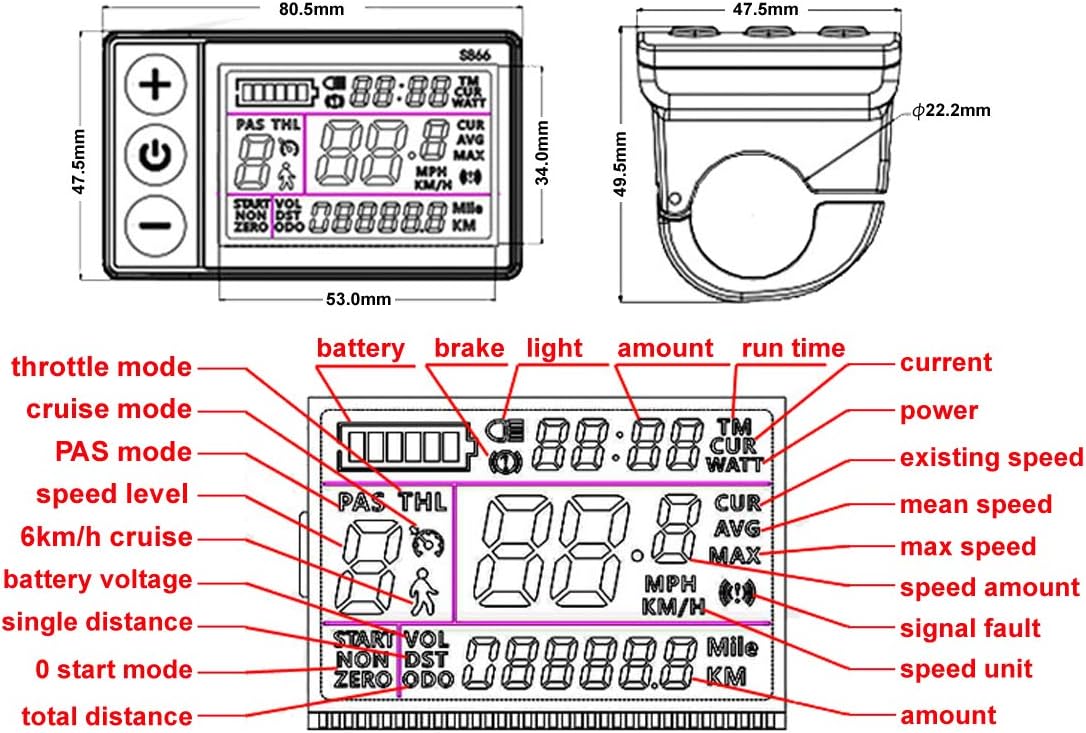

7). 1x LCD display

Note: this kit without battery and battery charger .

350W Brushless Hub Motor

q16q16

Before order (important):

1). This kit is for the 16-inch bike front wheel, it also fit some scooters.

2). This motor is a brushless hub motor, it can run about 30km/h.

3). This motor is a geared motor, it has planetary gear inside, it can drive forward but can not drive reverse.

4). The difference between 24V and 36V is the working current, if you want to ride longer, I recommend 36V kit.

5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 24V 15Ah or 36V 12Ah.

Controller and Throttle

q12q12

Motor specification

Model: L-Q16

Voltage: 24 / 36 / 48 Volt

Output: 350 Watt

Brake Type: V brake / Disc brake

Max Speed: 410 RPM

Rated Efficiency: ≥78%

Suitable for: 16″ bike front fork 100mm

Net weight: 3.5 KG

This motor can use V brake or disc brake,

and make sure your fork distance is more than 100MM

1). 1x 16″ brushless hub motor (for front wheel)
2). 1x Motor controller
3). 1x Throttle handle
4). 1x Brake lever
6). 1x Battery bag (no battery)
7). 1x LCD display
8). 1x tire and tube
